UNW-D50251
Digital Signage
Features
- LCD Screen : 50″ LCD HD display
- Windows OS , Android
- Video Format : Supports RM/RMVB, MKV, TS, FLV, AVI, VOB, MOV, WMV, MP4, etc
- Interior Fit Design
50" LCD HD display
50″ LCD HD display delivers crisp, vibrant visuals — perfect for impactful digital signage presentations.
Easy Maintenance
Digital signage systems offer easy maintenance with centralized control, allowing remote updates, monitoring, and troubleshooting without the need for on-site intervention.
Android Mainboard
- CPU : RK3288 Quad-Core ARM 1.7–1.8GHz
- RAM : Optional 2GB / 4GB
- Storage : 16GB / 32GB / 64GB (Optional)
- HDMI Interface : HDMI output * 1
- TF Card Interface : TF card * 1 (supports up to 64GB expansion)
- USB Interface : USB*2 (USB Host*1,SUB OTG*1)
- Network Interface : RJ45 network port * 1, WiFi 2.4G
- Headphone Interface : 3.5mm stereo headphone output * 1

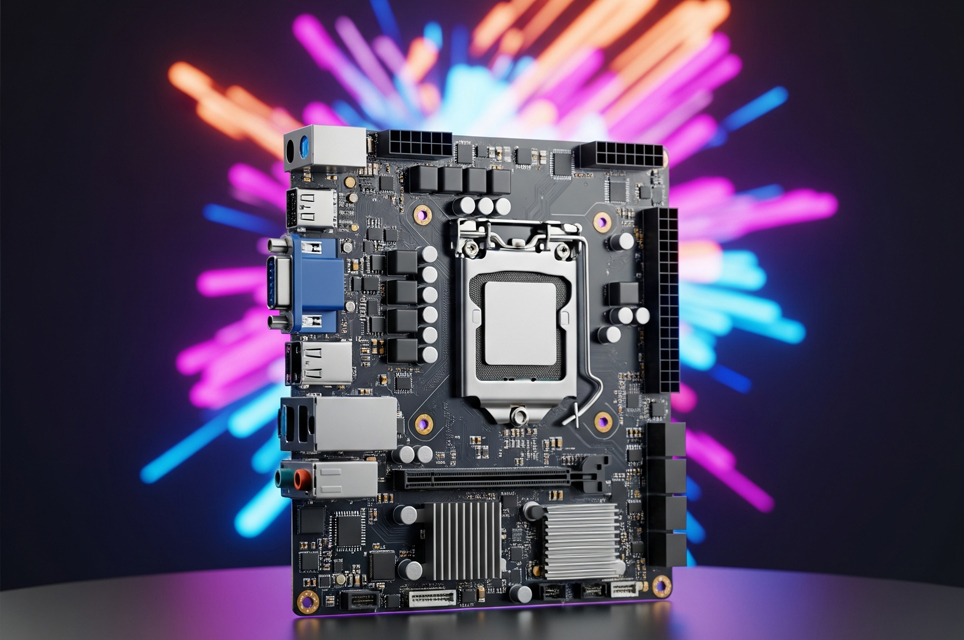

X86 Motherboard
- CPU : Intel i3, i5, i7 (optional)
- Memory : 4GB/8GB DDR3 (optional)
- Hard Drive : 128GB/256GB/512GB SSD (optional)
- Operating System : Windows 7/Windows 10 (optional)
- Operating System : Windows 7/Windows 10 (optional)
- Network Interface : 1 * RJ45 Gigabit Ethernet port, supports Wake-on-LAN
- VGA Interface : 1 * VGA DB15 interface
- HDMI Interface : 1 * HDMI 1.4 interface
- USB Interface : 2 * USB 3.0 ports, 2 * USB 2.0 ports
- Audio Interface : 1*LIN-OUT 1*MIC-IN
SPECS
Display
- LCD Screen : 50″ LCD HD display
- Resolution : 1920*1080
Visible - Area: 1097.8*618.4mm
- Viewing Angle : 178/178/178/178(L/R/U/D)
- Display Mode : Normally Black, IPS
- Contrast Ratio : 5000：1
- Brightness : 300cdm
- Color Gamut : 76%
- Screen Aspect Ratio : 16:09
Network
- WiFi : Supports WIFI 2.4G (expandable to BT 4.0)
- Ethernet : 10M/100M Network Port
- Bluetooth : Bluetooth 4.0
Media Playback
- Video Format : Supports RM/RMVB, MKV, TS, FLV, AVI, VOB, MOV, WMV, MP4, etc
- Audio Format : MP3/WMA/AAC etc.
- Image Format : Supports BMP, JPEG, PNG, GIF, etc
Attachment
- User Manual : Standard electronic file
- Certificate of Conformity : Product Certificate of Conformity
- Warranty Card : Product Warranty Card
- Antenna : WiFi Antenna Stick
- Power Supply : Power cord 1.8 meters
Packaging
- Unit Dimensions : 1892*700*123.5mm
- Packing Dimensions : 1910*205*812
- Net Weight : 50.2KG
- Gross Weight : 60KG
Other
- Speaker : 8 Ohms 5 Watts
- OSD Language : Supports BMP, JPEG, PNG, GIF, etc.
- Input Voltage : AC Power: 100～240V 50/60Hz
- Total Power : ≤120W
- Usage Environment : Stable operation 0–50℃ / Relative humidity ≤80% / Storage temperature -10～+60℃
- Certification : 3C/CE/FCC/RoHS
